TD-GCMS - Thermo-Desorption Gas Chromatography Mass Spectrometry
The so called Thermo-Desorption usually is a two-step sample injection method for GC-MS. In the first step an adsorbent material (e.g. TENAX-TA) is utilized to collect, and if necessary concentrate, volatile organic compounds (VOCs).
In the second step the adsorbent is heated in the thermo desorber oven, causing the adsorbent to release the collected sample (VOCs) into to GC-MS for separation, identification and quantification.
Applications
- Analysis of VOCs released during thermal processes
- Screening of additives and plasticizers in polymeric materials
- Testing of materials and devices for outgassing sensitive environments, e.g. clean room
- Determination of residual components, e.g. solvents in packaging materials or photo initiators in solder resist
- Analysis of general outgassing or odor problems.
Technical Specifications

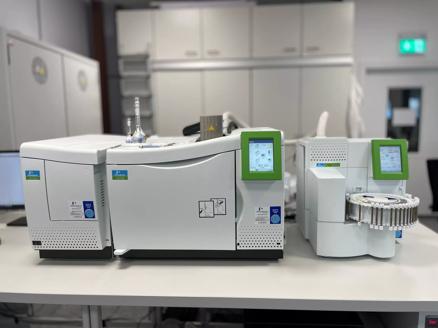

PerkinElmer TurboMatrix 650ATD with PerkinElmer - CLARUS SQ 8 GC/MS
PerkinElmer - CLARUS 680 (GC without Autosampler)
- Oven temperature: 30°C to 330°C/350°C
- Packed-column injector, 50 ˚C to 330°C/350°C
- Elite-5 Capillary Column - 30 m x 0.25 mm I.D. x 0.25 μm
PerkinElmer - CLARUS SQ 8T (MS)
- Source: PerkinElmer SMARTsource™
- Ionization Type: EI
- Filament: Marathon™
- Mass Range 1.0 – 1,200 u (amu)
- Detector Clarifi™
- Analyzer: Quadrupole with pre-filter
- Temperature Settings SMARTsource: Settable 50 ˚C – 350 ˚C
- GC transfer line: Settable 50 ˚C – 350 ˚C
PerkinElmer TurboMatrix 650ATD
- Automated Thermal Desorber (50 tubes with PPC, sample recollection, tube and trap)
- Primary Desorption oven: Temp range: 50 °C to 400 °C, Desorption time 1.0 min to 999.0 min
- Quartz cold trap: Temp range: -40 °C to 400 °C, Heating rates 5 °C/sec, 20 °C/sec, 40 °C/sec and ballistic
- Transfer line to GC: Temp range 50 °C to 300 °C
